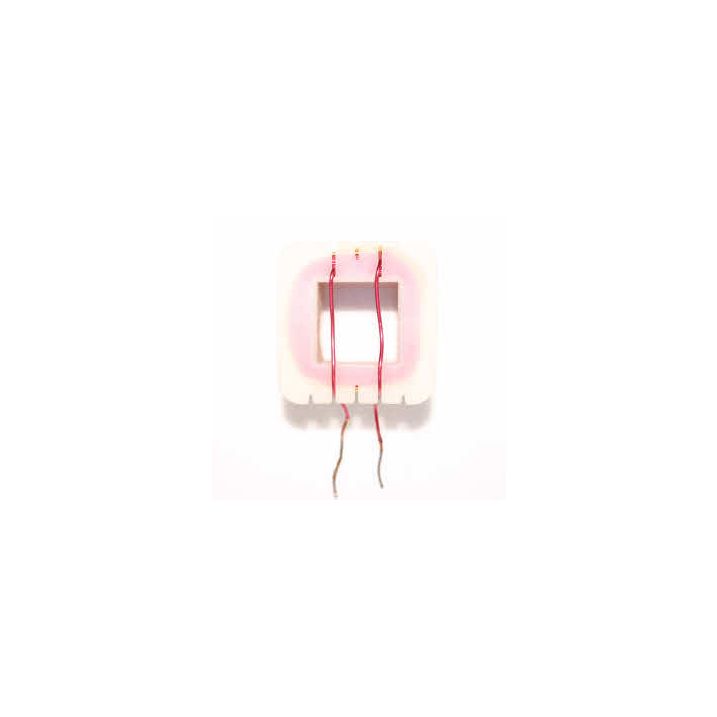

Audio Inductor AC100 Super Power Air Core 0.81mH - 1.00mH
AUDIO INDUCTOR TYPE: Air Core Super Power CORE TYPE: Air Core CORE dimensions H x L x W(mm): <1.00mH 44mm x 45mm x 32mm (Bobbin 3), 1.00mH - 5.5mH 50mm x 61mm x 38mm (Bobbin 4), >5.5mH 62mm x 69mm x 48mm ( Bobbin 5) WIRE Ø mm: 1.00mm. TYPICAL DCR Ω: 0.25mH 0.265Ω, 0.50mH 0.38Ω, 1.00mH .575Ω, 3.00mH 1.02Ω, 5.00mH 1.36Ω, 10.00mH 2.145Ω
Audio Inductors from Falcon Acoustics for loudspeaker crossovers and networks are wound with self-bonding enamelled wire on high permeability highest saturation ferrite or iron dust cores, or (air cores) plastic rectangular bobbins, handling up to twice as much power for the same distortion as some other cores. Falcon has supplied many leading loudspeaker manufacturers with components, both in the United Kingdom and abroad and this is your guarantee of high quality. Supplied tinned. RoHS compliant.
| Core Dia, mm: | <1.0mH 44mm x 45mm (Bobbin 3), 1mH - 5.5mH 50mm x 61mm (Bobbin 4), >5.5mH 62mm x 69mm ( Bobbin 5) |
|---|---|
| Core Length, mm: | <1.0mH 32mm, 1.0mH - 5.5mH 38mm, >5.5mH 48mm |
| Inductor Material | Air Core |
| Inductor Series | Air Core 1.00mm wire |
| Wire Dia, mm: | 1.00mm |
