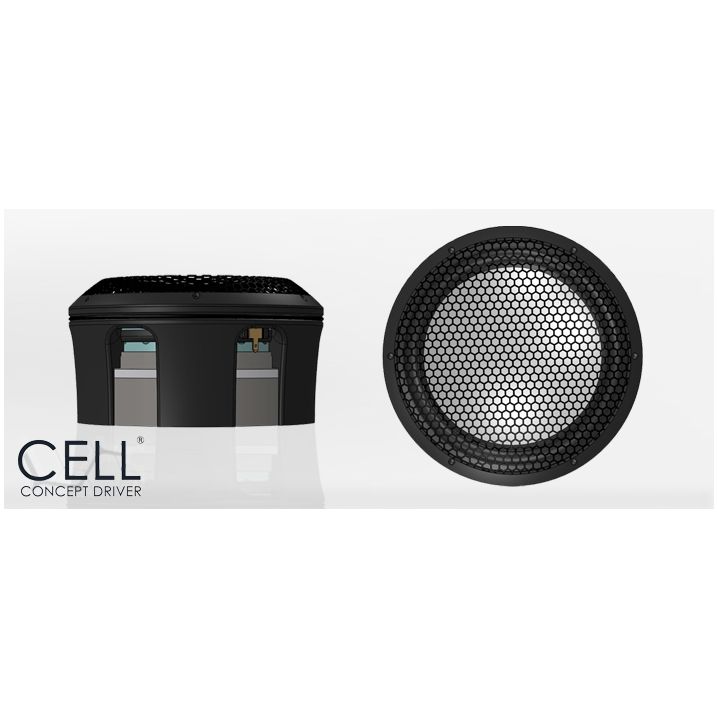

Accuton C90-6-724 Midrange MidWoofer Cell Concept
Accuton C90-6-724 is a 5 inch ceramic dome bass - midrange. Novel designed underhung motor does not cover rear of the dome, eliminating reflections and energy storage.
Accuton C90-6-724 is a 5 inch bass - midrange driver with ceramic dome, the first in an entirely new design approach by Accuton. An ideal acoustical center has been achieved, which is identical with Accuton tweeters. The novel designed underhung motor does not cover the rear of the dome, eliminating the chance for reflections and energy storage. A proprietary clamping technique provides easy mounting and adapting to individual frontplates.
A low loss rubber surround and a thin fabric spider center the moving parts with high linearity. Recommended application from 60 Hz – 6000 Hz
Delivery is normally 10-14 working days if not in stock.
Supplied in pairs (2 units) only. Free UK Delivery.
A Product Datasheet and a Dimensions Datasheet are available below.
| Accuton Driver Series | Cell Concept Tweeter |
|---|---|
| Driver Fs | 570 Hz |
| Driver Impedance | 6 ohm |
| Driver Power | 100 W |
| Driver Qes | 0.58 |
| Driver Qms | 5.47 |
| Driver Qts | 0.52 |
| Driver Rdc | 5.80 ohm |
| Driver Sens SPL | 89 |
| Driver Vas | 5.10 l |
