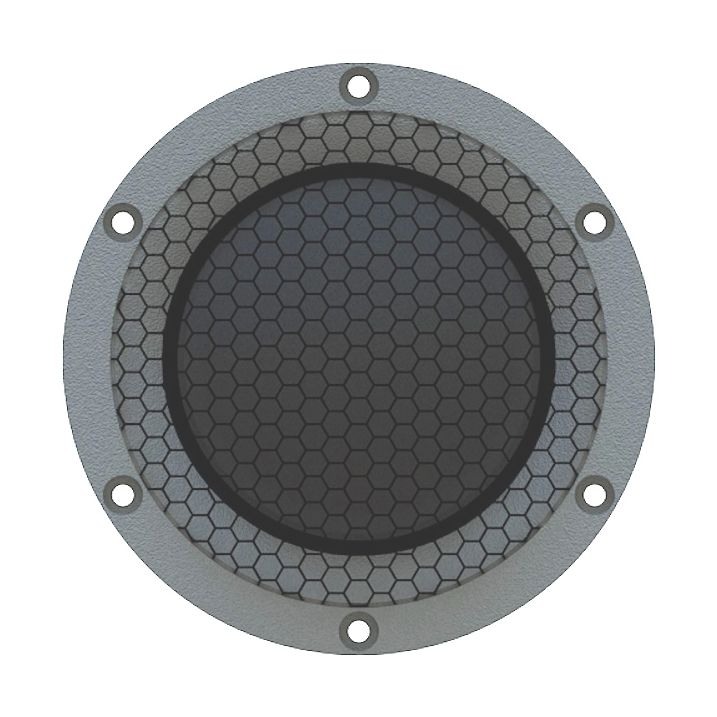

BlieSMa M74A-6 Alum/Mag Alloy Dome Midrange
BlieSMa M74A-6 74mm Midrange. 6 ohms. 95dB sens. 74 mm aluminium-magnesium alloy dome with variable thickness for higher first breakup mode. Ultra-Low moving mass for optimum transient response and sensitivity. Neo Cu sleeve motor for low distortion. Natural wool damped rear chamber. No ferrofluid.
Textile surround covered by faceplate with moderate horn surround loading for flat frequency response and wide off-axis response
Underhung voice coil, titanium former. 2.4mm p-p excursion. The Aluminium rear chamber has natural wool damping. Gold plated wire terminals. No ferrofluid for improved dynamics.
Recommended frequency range Fs (400Hz) -4.5kHz
Priced per unit, sold in boxed pairs (Qty2)
BlieSMa M74A-6 74mm Midrange. 6 ohms. 95dB sens
- 74 mm aluminium-magnesium alloy dome with variable thickness for higher first breakup mode
- Ultra-Low moving mass for optimum transient response and sensitivity
- Textile surround covered by faceplate with moderate horn surround loading for flat frequency response and wide off-axis response
- Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
- No ferrofluid for improved dynamics
- Underhung voice coil wound on titanium former
- 2.4mm (p-p) linear excursion
- Aluminium rear chamber with natural wool damping
- Gold plated wire terminals
- Recommended frequency range Fs (400Hz) -4.5kHz
Delivery is normally 7-10 working days if not in stock.
Supplied in boxed pairs (2 units) only. Priced per unit.
A Product Datasheet is available below.
| Driver Impedance | 6.0 |
|---|---|
| Driver Rdc | 5.6 |
| Driver Sens SPL | 95.0dB |
| Driver Fs | 400 Hz |
| Driver Bl | 6.8 |
| Driver Qes | 0.75 |
| Driver Qms | 6.40 |
| Driver Qts | 0.67 |
| Driver Power | N/A |
| Driver Vas | - |
