Scanspeak Illuminator D3004/602000 Tweeter - 1" dome
Scanspeak Illuminator D3004/602000 Tweeter - 1" dome
A product datasheet can be downloaded from the Product Description page.

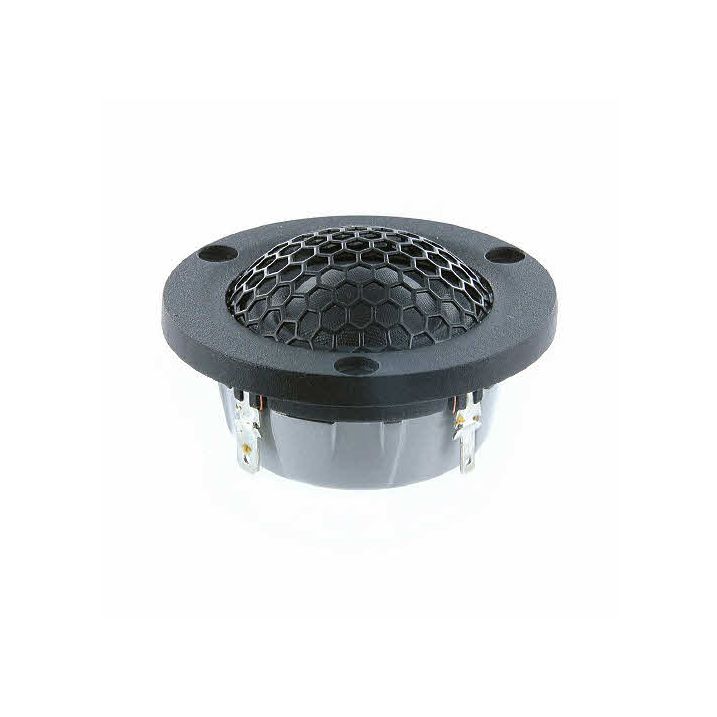

Scanspeak D3004/602000 Illuminator Tweeter, a member of the superb Illuminator Range. Very compact and excellent for small speaker systems and car audio applications. 3 mounting holes. Black die-cast anodised aluminum face plate and black protective grille over the 1" textile dome.
This tweeter features the “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion from the large roll surround. These compact tweeters are fully comparable both in sound output and quality to the larger members of the Illuminator or Revelator ranges.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
| Driver Fs | 700 Hz |
|---|---|
| Driver Impedance | 4 ohms |
| Driver Power | 130W |
| Driver Qes | 1.6 |
| Driver Qms | 4.15 |
| Driver Qts | 1.15 |
| Driver Rdc | 3.5 ohm |
| Scanspeak Driver Range | Scanspeak Illuminator |
| Driver Sens SPL | 89.2 dB |
| Driver Vas | 0.01 l |
