Scanspeak R3004/602000 Tweeter - Illuminator Range
Scanspeak R3004/602000 Tweeter - Illuminator Range
A product datasheet can be downloaded from the Product Description page.

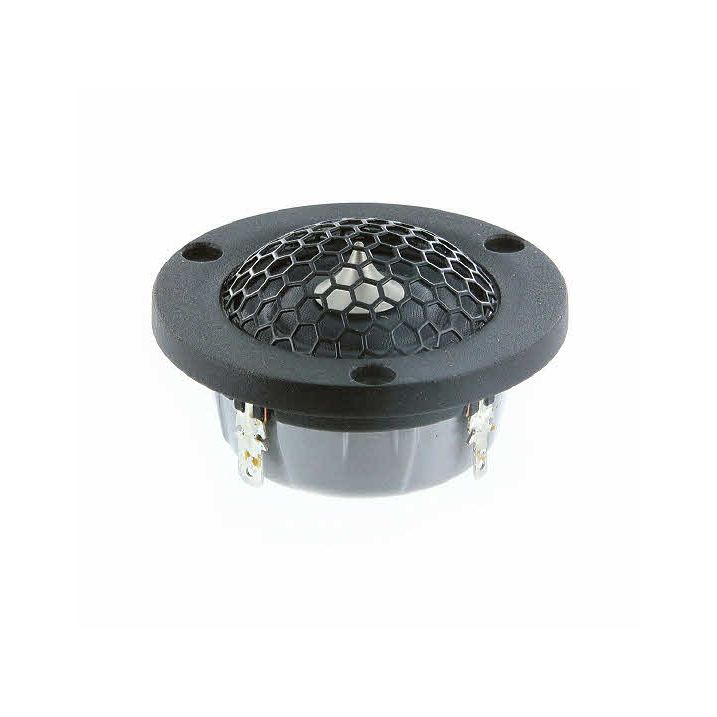

Scanspeak R3004/602000 Illuminator Tweeter, a member of the superb Illuminator Range. Very compact and excellent for small speaker systems and car audio applications. 3 mounting holes. Black die-cast anodised aluminum face plate and black protective grille over the 1" Ring Dome with Phase Plug. Non resonant Aluminum rear chamber.
This tweeter features the “SD-2" Neodymium large magnet symmetric drive motor system. These compact tweeters are fully comparable both in sound output and quality to the larger members of the Illuminator or Revelator ranges.
Delivery is normally 7-10 working days if not in stock. Supplied in pairs (2 units) only.
A Product Datasheet is available below.
Driver Fs | 625 Hz |
---|---|
Driver Impedance | 4 ohms |
Driver Power | 130W |
Driver Qes | 1.43 |
Driver Qms | 5.73 |
Driver Qts | 1.14 |
Driver Rdc | 3.8 ohm |
Scanspeak Driver Range | Scanspeak Illuminator |
Driver Sens SPL | 87.4 dB |
Driver Vas | 0.01 l |
