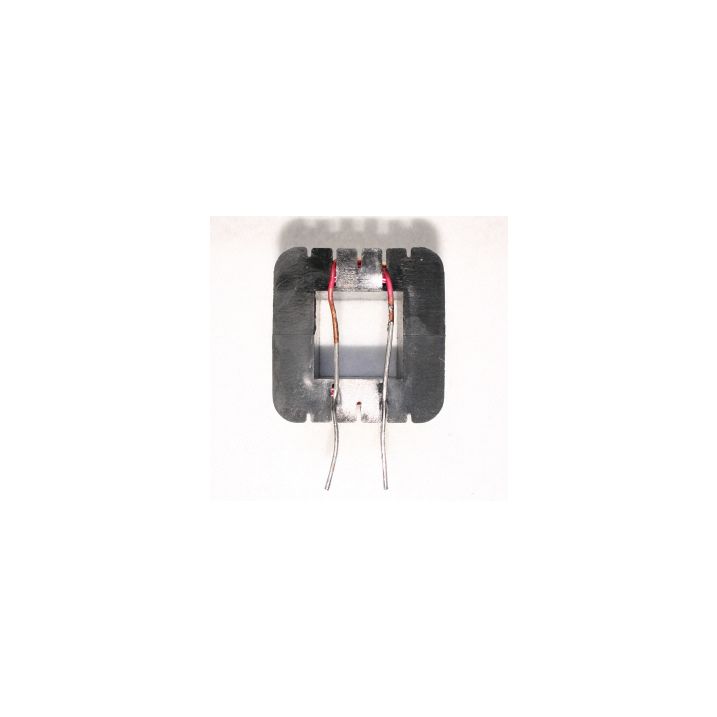

AC125 Sup. Super Power Air Core up to 0.20mH Audio Inductor
AUDIO INDUCTOR TYPE: Air Core Sup. Super Power CORE TYPE: Air Core CORE dimensions H x L x W(mm): <0.60mH 44mm x 45mm x 32mm (Bobbin 3), 0.60mH - 3.5mH 50mm x 61mm x 38mm (Bobbin 4), 3.5mH - 7.00mH 62mm x 69mm x 48mm ( Bobbin 5), ), >7.0mH 90mm x 72mm (Bobbin 6) WIRE Ø mm: 1.25mm. TYPICAL DCR Ω: 0.25mH 0.17Ω, 0.50mH 0.24Ω, 1.00mH .378Ω, 3.00mH 0.77Ω, 5.00mH 0.97Ω, 10.00mH 1.50Ω
Audio Inductors from Falcon Acoustics for loudspeaker crossovers and networks are wound with self-bonding enamelled wire on high permeability highest saturation ferrite or iron dust cores, or (air cores) plastic rectangular bobbins, handling up to twice as much power for the same distortion as some other cores. Falcon has supplied many leading loudspeaker manufacturers with components, both in the United Kingdom and abroad and this is your guarantee of high quality. Supplied tinned. RoHS compliant.
| Core Dia, mm: | <0.6mH 44mm x 45mm (Bobbin 3), 0.6mH - 3.5mH 50mm x 61mm (Bobbin 4), 3.5mH - 7.0mH 62mm x 69mm (Bobbin 5), >7.0mH 90mm x 72mm (Bobbin 6) |
|---|---|
| Core Length, mm: | <0.6mH 32mm, 0.6mH -3.5mH 38mm, 3.5 - 7.0mH 48mm, >7.0mH 60mm |
| Inductor Material | Air Core |
| Inductor Series | Air Core 1.25mm wire |
| Wire Dia, mm: | 1.25mm |
