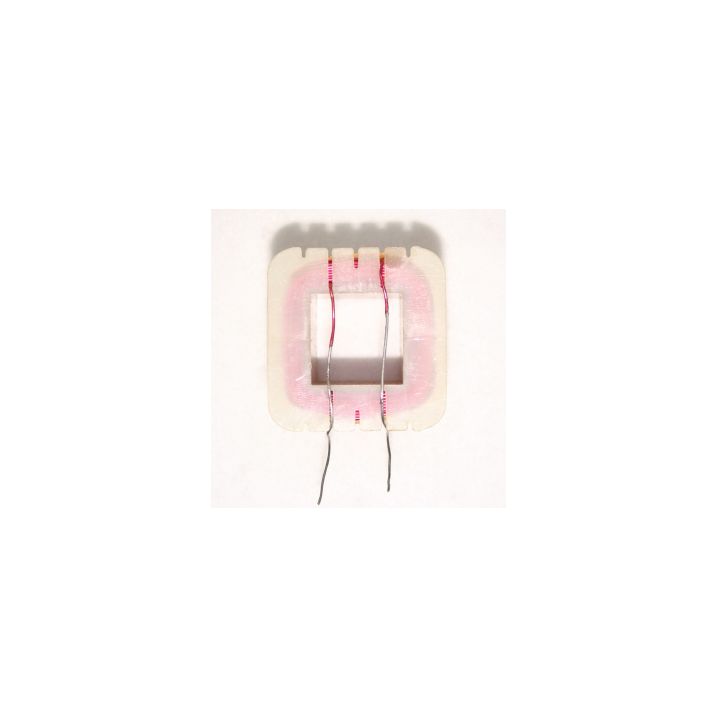

Audio Inductor AC071 High Power Air Core 0.81mH - 1.00mH

AUDIO INDUCTOR TYPE: Air Core High Power CORE TYPE: Air Core CORE dimensions H x L x W(mm): <0.6mH 29mm x 32mm x 21mm (Bobbin 2), 0.6mH - 5.5mH 44mm x 45mm x 32mm (Bobbin 3), >5.5mH 50mm x 61mm x 38mm (Bobbin 4) WIRE Ø mm: 0.71mm. TYPICAL DCR Ω: 0.25mH 0.43Ω, 0.50mH 0.614Ω, 1.00mH 1.00Ω, 3.00mH 1.79Ω, 5.00mH 2.39Ω, 10.00mH 3.67Ω

Audio Inductors from Falcon Acoustics for loudspeaker crossovers and networks are wound with self-bonding enamelled wire on high permeability highest saturation ferrite or iron dust cores, or (air cores) plastic rectangular bobbins, handling up to twice as much power for the same distortion as some other cores. Falcon has supplied many leading loudspeaker manufacturers with components, both in the United Kingdom and abroad and this is your guarantee of high quality. Supplied tinned. RoHS compliant.
