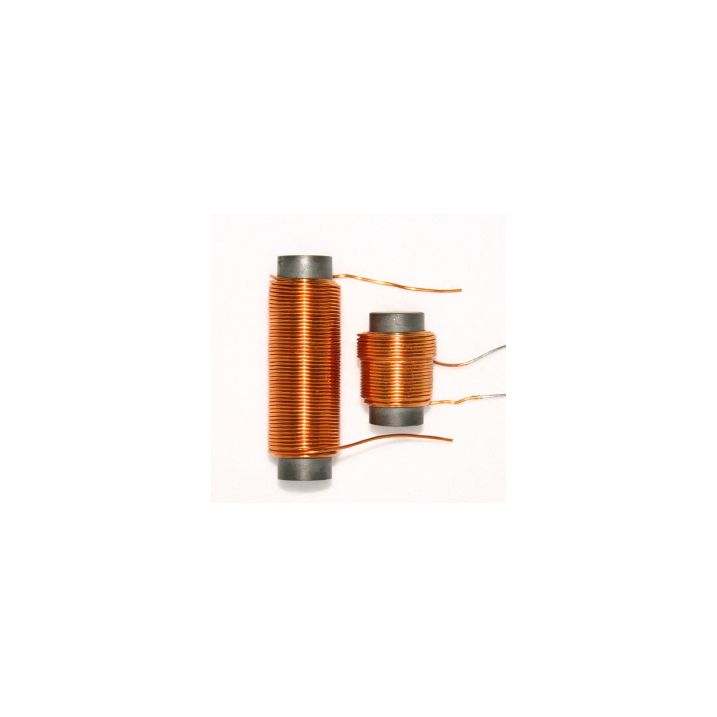

Audio Inductor HP071 High Power Low Loss Ferrite Core 0.81mH - 1.00mH
As low as £4.87 £4.06
Audio Inductor HP071 High Power Low Loss Ferrite Core 0.81mH - 1.00mH
AvailabilityIn stock
Only %1 left
SKU
HP071-1M00
AUDIO INDUCTOR TYPE: High Power Low Loss CORE TYPE: Ferrite CORE Ø / length (mm): <1.0mH 12/25mm, 1.0mH> 12/50mm WIRE Ø mm: 0.71mm. TYPICAL DCR Ω: 0.25mH 0.156Ω, 0.50mH 0.233Ω, 1.00mH 0.283Ω, 3.00mH 0.523Ω, 5.00mH 0.72Ω, 10.00mH 1.206Ω
Audio Inductors from Falcon Acoustics for loudspeaker crossovers and networks are wound with self-bonding enamelled wire on high permeability highest saturation ferrite or iron dust cores, or plastic rectangular bobbins (air cores), handling up to twice as much power for the same distortion as some other cores. Falcon has supplied many leading loudspeaker manufacturers with components, both in the United Kingdom and abroad and this is your guarantee of high quality. Supplied tinned. RoHS compliant.
| Core Dia, mm: | 12mm |
|---|---|
| Core Length, mm: | <1.0mH 25mm, >1.0mH 50mm |
| Inductor Material | Ferrite Core |
| Inductor Series | High Power 0.71mm wire |
| Wire Dia, mm: | 0.71mm |
