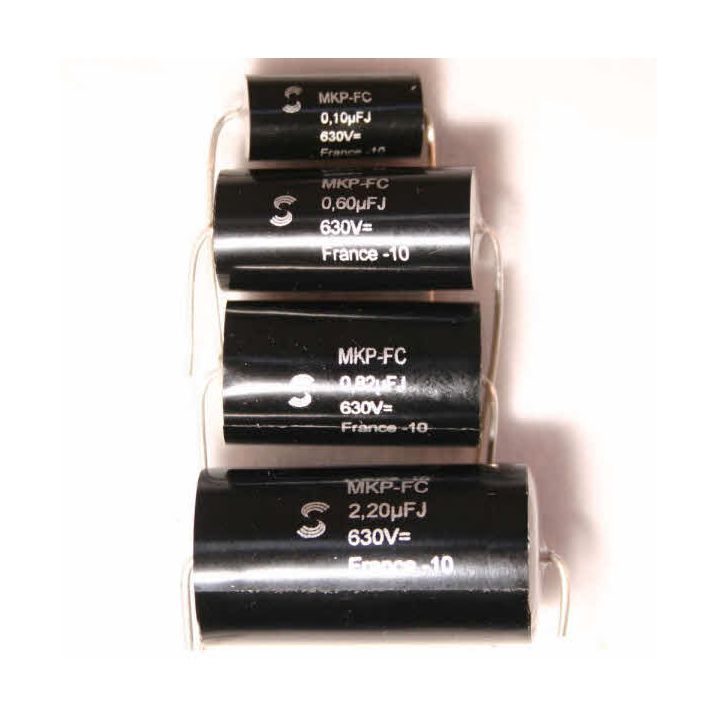

Solen 0.47uF 630V DC Polypropylene Capacitor
Solen 0.47uF 630V DC FastCap Polypropylene Audio Capacitor for high quality loudspeaker crossovers and networks, tolerances available, from Falcon Acoustics, the leading supplier of diy hifi components.
FALCON EXCLUSIVE - available in Factory Manufacture Audiophile 2% tolerance, the most accurate range available.
Solen 400V and 630V SCR FastCap Polypropylene Capacitors are widely used by OEM HiFi manufacturers and audiophiles. They are famous world-wide for superb sonic performance, and offer excellent value for money. As specified by HiFi World in their Kits. Some non-standard values have been specially made by Solen/SCR for Falcon Acoustics and are unobtainable elsewhere.
FALCON EXCLUSIVE - available in Factory Manufacture Audiophile 2% tolerance, the most accurate range available.
DF typ. v low e.g. 1.00uF 630VDC .0001 Dielectric Absorption Factor ≤ .05% @ 20°C Test Voltage:- 1.5 x Vr/5Secs Insulation Resistance:- ≥100,000MΩ @ 20°C Working Temperature:- -55°C to +85°C
| Capacitor DCV | 630V |
|---|---|
| Capacitor Dia, mm: | 12mm |
| Capacitor Form | Axial |
| Capacitor Leadwire Dia, mm: | 0.80mm |
| Capacitor Length, mm: | 24mm |
| Capacitor Material | Solen Polypropylene |
| Capacitor Series | Solen 630V |
